Check worm gearbox ratios, 8000lb winch torque, adaptable mounting demand and ABB motor demand.
Estimate drum torque for a pulling application. This does not rate a winch or approve lifting.
Enter the effective radius and calculate. Use the largest working layer for the highest torque demand.
Use the 400 W / 0.5 hp / 1/4 hp checker for speed, torque and thermal estimates. These power markers do not rate an 8,000 lbf winch.
Ratio evidence updated: 2026-07-25. Winch evidence checked: 2026-09-20. Assumptions and applicability differ between the two tools.
By AMR Gearbox · Published April 28, 2026 · Updated 2026-10-25 · 49 cited sources.
Estimate your operating point, then identify what the supplier must verify before a mounting change or replacement. This checker does not certify a gearbox selection.
Read mounting evidence, worked examples and retrofit checksWinch evidence checked 2026-09-20. Model examples below describe complete assemblies; they do not establish an interchangeable gearbox specification.
8,000 lbf is about 35.586 kN. A vehicle weighing 8,000 lb does not automatically require that line force: slope, rolling resistance and rigging change demand. The tool expects rope tension.
NIST force conversionMore rope on the drum increases effective radius and reduces pull at fixed torque. Maximum rope payout means fewer layers, subject to the manual’s required remaining wraps.
HD-234 manual, specifications p. 1RE-series instructions prohibit hoisting. A self-locking claim does not establish a safety function. For suspended loads, request a purpose-designed hoist with verified braking and holding provisions.
RE manual, safety precautions p. 1| Rope layer | HD-234 | RE 8000 |
|---|---|---|
| 1 | 8,000 | 8,000 |
| 2 | 6,700 | 6,800 |
| 3 | 5,700 | 6,000 |
| 4 | 5,000 | 5,300 |
An 8,000 lbf requirement on layer 4 exceeds both examples. Obtain a different rated assembly or an approved rigging solution; changing the motor alone does not uprate the winch.
Swipe tables horizontally to compare all columns.
| Example | Verified configuration | Selection implication |
|---|---|---|
| Hydraulic HD-234 | 34:1 in the cited manual | Match pump flow, motor displacement, pressure and heat rejection; budget for the hydraulic installation. |
| Electric RE 8000 | 360:1; 12 V / 24 V variants in the manufacturer RE catalog | Verify battery, wiring and intermittent duty; do not apply the small-drive 400 W assumptions. |
| Standalone reducer replacement | Compatibility unknown without OEM drawing and part number | Include shaft, bearings, clutch, drum interface and brake verification in cost and lead time. |
These are examples, not a universal ratio range. The RE product listing mentions light industrial use, while the cited owner manual excludes industrial applications and hoisting. Resolve this conflict with the manufacturer for the exact serial number; this page follows the restrictive manual boundary. Pricing and replacement compatibility remain unverified.
Illustrative radii, not dimensions of the products above. Using T = lbf × 4.448221615 × radius(mm) / 1,000:
| Line force | Effective radius | Drum demand | Decision |
|---|---|---|---|
| 8,000 lbf | 50 mm | 1,779.3 Nm | Confirm actual working radius before sizing. |
| 8,000 lbf | 100 mm | 3,558.6 Nm | Double radius doubles torque demand. |
| 8,000 lbf | 160 mm | 5,693.7 Nm | At 3,558.6 Nm unchanged torque, ideal pull falls to 5,000 lbf; actual rating still needs the layer chart. |
Send line pull, maximum working rope radius, rope diameter and layer count, line speed, pull duration and recovery time, power source, shock exposure, mounting drawing and exact model/serial number. Include the estimate above and ask for verified torque, layer capacity, thermal duty and holding/brake limits.
If dimensions are unknown, start with the nameplate and drum/rope drawing. Do not substitute a vehicle mass or bare drum diameter. For lifting, specify the suspended-load duty and request a suitable hoist.
Contact engineering with the load caseRevise estimateThe limits table below defines where the scope of the calculation limits begin, and who should not use the selected 45:1 / 400 W / 0.5 hp / 1/4 hp screening outputs.
A true mechanical 1:1 requirement needs an architecture that preserves input speed. It prevents teams from forcing worm reducers into no-reduction cases without explicit efficiency and safety justification.
Search terms involving "4 speed worm gearbox HE" can refer to educational or hobbyist robotics kits (such as Tamiya item #72008). It is critical to distinguish these low-voltage manually assembled plastic kits from continuous-duty industrial AMR gearboxes before treating the request as an RFQ.

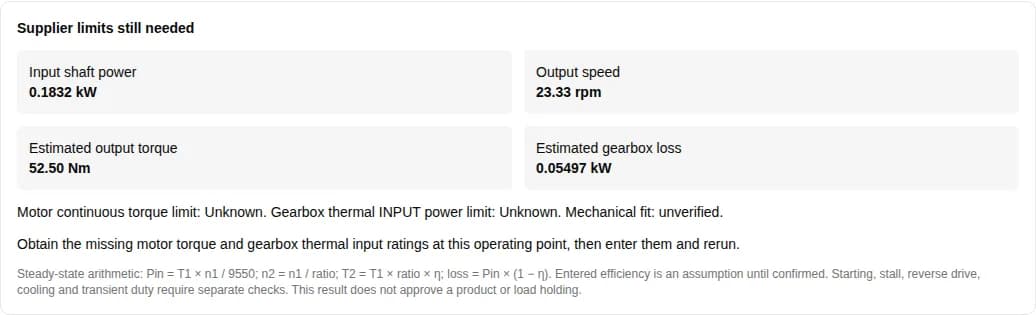

Have an ABB motor or a legacy Baldor / Dodge reducer? Start with shaft demand below, then use the nameplate and drawings to identify the assembly. This independent guide does not establish ABB or Dodge affiliation or parts availability.
Sources reviewed: 2026-10-21. Catalog values and availability require confirmation for the exact part number.
Conceptual verification flow; no loadability curve or dimensional interchange is implied.
Reduced-speed conveyor: assume 2.5 Nm at 700 rpm, ratio 30:1 and 70% running efficiency. Arithmetic gives 0.1832 kW input, 23.33 rpm output, 52.5 Nm output torque and 0.0550 kW loss. With both supplier limits blank the outcome is “Supplier limits still needed.” These are example inputs, not ABB or Dodge specifications.
Same torque at half speed: at an assumed 350 rpm with the same efficiency, input and loss halve to 0.09162 kW and 0.02749 kW. Actual efficiency and motor torque capability can change with speed; obtain updated data. This calculation does not predict oil temperature.
Legacy retrofit: even if the example falls below entered power and torque limits, an unmatched imperial shaft or foot pattern leaves fit unverified. Request both drawings and a costed adapter proposal before buying a metric replacement; a nearby center distance is not an interchange.
Public evidence reviewed 2026-10-25. Model-specific ratings remain to be confirmed.
An adaptable worm gearbox supports several manufacturer-approved mounting arrangements, often through modular feet or flanges. The available arrangements depend on the product family. Renold describes variable mounting for WM units; this does not establish that every worm reducer can be rotated in the field. Renold WM product scope.
Return to the operating-point checker| Question | What this page establishes | Evidence / next action |
|---|---|---|
| What speed and torque will I obtain? | Steady-state estimates from entered power, speed, ratio and running efficiency. | Reproduce with the equations in section 3; confirm efficiency at the actual load. |
| Can I rotate the housing? | Only the mounting geometry and a review checklist. | Obtain the exact manufacturer assembly and lubrication drawing; see section 2. |
| Will it run continuously? | Estimated losses, with no universal thermal capacity. | Use the model-specific rating procedure; see Radicon and ISO in section 4. |
| Will it hold a load or fit the old base? | Neither follows from ratio or a similar frame number. | Verify a holding system and a dimensional drawing; see sections 6 and 8. |
U, O, V-X, V-Y and VS are descriptive labels on this page, not a cross-brand code standard. Sketches show shaft orientation only. They omit oil levels and plug locations because those require the exact assembly drawing.
Check the lubrication method at the actual input speed; slow operation may need a different arrangement.
Verify oil delivery to the worm and bearings. Do not raise the fill level by guesswork.
Ask how elevated bearings are lubricated; do not add grease unless the manufacturer instructs it.
Check whether a factory drywell or another approved sealing arrangement is available for contamination-sensitive service.
Verify upper worm bearing lubrication and any required factory modification before ordering.
| Item | Known principle | What remains model-specific |
|---|---|---|
| Breather | An approved vent must remain functional where fitted. | Whether a vent is fitted and which port is designated. |
| Oil level | Check while stationary using the approved level indication. | Fill quantity, oil grade, standing position and correct level port. |
| Drain | Provide maintenance access to the designated drain. | Correct drain location and safe drain procedure. |
| Bearings | A change in orientation may change lubricant delivery. | Oil, grease or a factory lubrication modification for each bearing. |
| Cooling | Keep required airflow and service access clear. | Fan/cowl arrangement and thermal rating for this assembly. |
For WM units, the installation guidance calls for stationary level checks and warns against overfilling; vertical worm-shaft operation needs attention to the upper bearing. These are WM instructions, not universal fill or grease rules. Renold WM catalogue, printed page 43 (PDF access may depend on the publisher; product and brochure entry).
| Quantity | Equation | Units and limitation |
|---|---|---|
| Output speed | n₂ = n₁ / i | rpm; i is input speed divided by output speed. |
| Output power | P₂ = P₁ × η | kW; η is the entered percentage divided by 100. |
| Output torque | T₂ = 60,000 × P₂ / (2π × n₂) | Nm; continuous operating point, with no starting or shock factor. |
| Estimated loss | P_loss = P₁ − P₂ | kW; loss inferred from entered total efficiency, not oil temperature. |
| Nominal tangential force | F_t = 2,000 × T₂ / D | N when D is pitch diameter in mm; excludes other shaft forces. |
These equations follow speed ratio, rotational power P = Tω, and force at a pitch radius. They calculate demand rather than an allowable load. A motor nameplate rating may differ from the actual mechanical input at partial load. Efficiency changes with model, speed, load, lubricant and temperature; the default is an explicit example assumption.
The checker records ambient temperature but does not assign thermal capacity. Radicon Series AM selection uses catalogue thermal ratings and factors for ambient temperature, mounting/output speed and running time. Its example also includes efficiency when converting to an output rating. Do not compare an input-power rating with an output-power demand. Radicon Series AM catalogue, printed pages 3 and 6.
The public ISO/TR 14179-1:2001 abstract describes an analytical thermal balance with a 25°C ambient and 95°C sump reference. Those reference conditions are not a universal operating limit. It does not substantiate a generic 85°C formula or a fixed 15%/20% mounting penalty. This checker implements no ISO-certified thermal rating. ISO scope and reference conditions.
Moving a force farther from the support increases its bending moment. Ask for the actual shaft-load rating at the load position, direction, speed and required life. Belt pretension, chain dynamics and axial forces require additional analysis. Radicon provides a separate overhung-load selection procedure; this page deliberately gives no universal correction factor or bearing-load pass. Radicon Series AM, printed pages 13–14.
Renold's replacement brochure limits direct WM / Radicon Series A mid-range interchangeability to underdriven mounting; overdriven assemblies require Renold confirmation. Compare the exact drawings before ordering. No small imperial-to-RV030–RV090 mapping is established. Radicon lists its Small Series separately. Renold replacement brochure, printed page 4; Radicon Small Series.
| Interface | Record on both drawings | Decision / cost consequence |
|---|---|---|
| Shaft location | Center-to-base height; shaft offsets and extension lengths. | Check alignment; an adapter plate adds height and may worsen an already high replacement. |
| Shaft and key | Diameter, tolerance, key width/depth and engagement length. | A coupling or sleeve needs adequate wall thickness, torque capacity and retention. |
| Feet and casing | Bolt coordinates, thread engagement, bracket geometry and envelope. | Verify joint design and approved tightening instructions, rather than generic bolt torque. |
| Motor interface | Pilot, bolt circle, flange depth, shaft and key. | Confirm an exact IEC/NEMA adapter; frame names alone are insufficient. |
| Maintenance access | Fill, level, drain, vent, grease and cooling clearance. | Include access changes, commissioning and downtime in installed cost. |
Klüber's textile-industry guide identifies its GH 6 products as not miscible with mineral oil or PAO-based oil, and calls for checking seals, coatings and inspection glasses. This supports checking the exact products before a change; it does not prove every mixture will polymerize or justify a universal hydrocarbon flush. Klüber textile-industry guide, printed pages 36–37.
| Situation | Risk / unknown | Minimum action |
|---|---|---|
| Oil identity unknown | Compatibility cannot be established from appearance. | Identify the existing product before topping up. |
| Mineral to PAG | Base oil, seal and coating compatibility. | Obtain a written product-specific changeover and cleaning procedure. |
| Different mounting | Oil quantity and bearing supply may change. | Use the approved orientation-specific level and service instructions. |
| Longer drain interval | No universal hours or temperature ceiling. | Use supplier instructions and the actual duty/condition-monitoring plan. |
Bodine warns that wear can reduce self-locking and that worm gearing should not be the primary braking mechanism. The tool cannot infer lead angle, friction or release behavior from reduction ratio. Specify a rated holding system for the machine, and verify recovery and towing on the actual drivetrain. Bodine worm-gearing technical paper, page 1.
| Choice | Potential benefit | Risk / evidence needed |
|---|---|---|
| Keep an adaptable worm unit | Preserve a compact right-angle layout and approved mounting options. | Confirm duty efficiency, heat rejection, backlash and brake/recovery behavior. |
| Compare planetary or helical-bevel | May suit different efficiency or precision requirements. | Obtain candidate data at the same operating point, including package and installed cost. |
| Change only mounting | May reuse a serviceable reducer. | Requires approval of lubrication, thermal rating, fasteners and maintenance access. |
| Rebuild or buy a dimensionally matched unit | May reduce interface adaptation work. | Request condition assessment, parts availability, warranty and current lead time. |
For AMR traction, compare measured duty-cycle losses and approved manual recovery; for lift axes, evaluate the complete holding system. Public evidence here does not establish a battery-runtime penalty, a universal backlash range, a price range or present stock availability.
Hypothetical calculations using the tool presets, not customer installations or validated field outcomes.

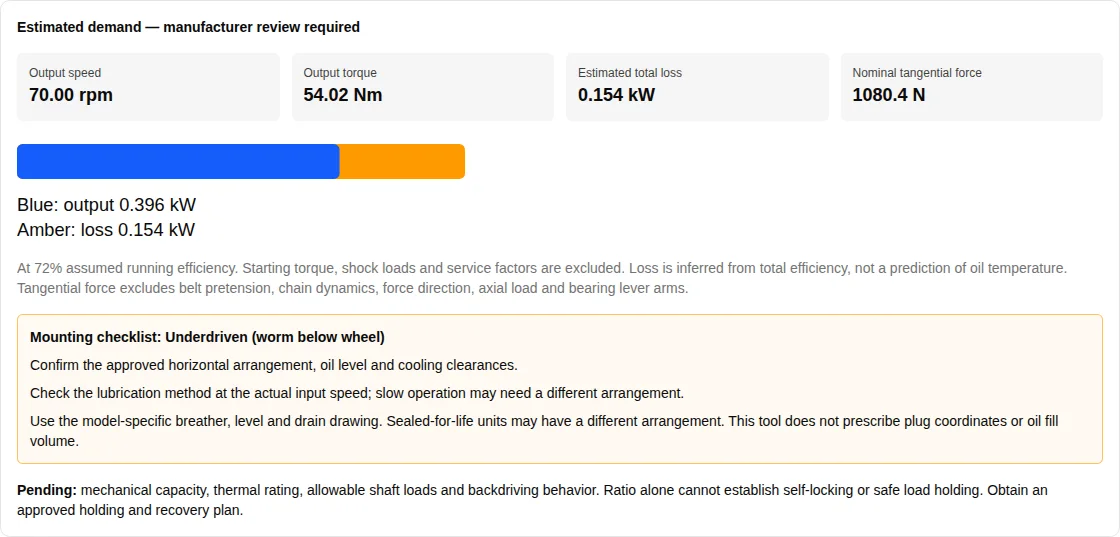

0.55 kW, 1,400 rpm, 20:1, assumed 72% efficiency, 100 mm pitch diameter.
n₂ = 70 rpm; P₂ = 0.396 kW; T₂ ≈ 54.02 Nm; loss = 0.154 kW; F_t ≈ 1,080.4 N.
Next: provide duty and shaft load position to the supplier. These figures do not approve a frame size.
0.37 kW, 1,400 rpm, 40:1, assumed 64% efficiency, 80 mm pitch diameter, 30°C ambient.
n₂ = 35 rpm; T₂ ≈ 64.61 Nm; loss = 0.1332 kW; F_t ≈ 1,615.2 N.
Next: request the approved mounting, lubrication and thermal data. Neither 40:1 nor this loss estimate proves holding or thermal capacity.
1.1 kW, 1,400 rpm, 50:1, assumed 60% efficiency, upward output, direct coupling.
n₂ = 28 rpm; T₂ ≈ 225.09 Nm; loss = 0.440 kW. Tangential force is not calculated without a pitch diameter.
Next: verify bearing lubrication and external radial/axial mixer loads. An omitted sprocket force does not mean zero shaft load.
Reviewed 2026-10-25. Product pages establish family scope; catalogues apply to the identified series and revision. The public ISO abstract establishes scope only. No paid standard clauses, private plant audits or customer outcomes are claimed as verified.
Prepare the model/serial plate, current and proposed mounting photos, dimensioned interface drawing, operating-point result, duty cycle, starts, peak loads and recovery requirements. Ask the supplier to return the rating basis, lubrication drawing, holding plan and any adapter costs.
Deep layer: calculation logic, source scope, and known uncertainty so decisions are auditable.
Core conclusions in this page map to traceable sources. Ratio evidence reviewed July 25, 2026; winch evidence reviewed 2026-09-20; ABB motor and legacy Dodge evidence reviewed 2026-10-21; adaptable mounting evidence reviewed 2026-10-25.
Planned review cadence: every 6 months, or earlier when standards, supplier curves, or thermal assumptions change.
Practical answers about winch loads, motor power, ratio selection, thermal limits and replacement requirements.
Use the checker result as the first filter, then close the loop with supplier thermal/backlash evidence before procurement freeze.
